  355nm.com > JDS UNIPHASE XCYTE UV LASER

JDS Uniphase Xcyte Laser Systems serviced by Laser Innovations. Models CY-SM20, CY-SM60, CY-SM100, CY-SM150.
JDSU Xcyte Diode Pumped UV Laser System
JDS Uniphase Xcyte Laser CY-SM20, CY-SM60, CY-SM100, CY-SM150

Laser Innovations offers sales, service and support for your JDS Uniphase Xcyte Laser System.  We service 355nm Xcyte Laser Systems.  Contact us.




JDS Uniphase Xcyte Laser Systems serviced by Laser Innovations. Models CY-SM20, CY-SM60, CY-SM100, CY-SM150.

Specifications1


     JDS UNIPHASE XCYTE LASER
  CY-SM20 CY-SM60 CY-SM100 CY-SM150
Wavelength 355 nm
Output Power, average2
   Initial3
   Lifetime
20±2 mW
20±4 mW
60±6 mW
60±12 mW
100±10 mW
100±20 mW
150±15 mW
150±30 mW
Output Power Stability4 < ±1% (average over 8 hours)

Pulse
Repetition Rate 100±10 MHz
Pulse Width, IR >10 ps

Beam
Beam Quality M2 < 1.2 (3σ)
Spectral Purity >99%
Beam Pointing
   (relative to bezel normal)		 <±8 mrad
Pointing Stability5 < 20 µrad/°C
Polarization Ratio > 100:1  Horizontal
Waist Diameter, Radial Beam 0.9 ± 0.2 mm
Waist Asymmetry < 15%
Amplitude Noise6 <1% rms (10 Hz to 1 MHz)
Beam Exit Location
  (XY ref. bottom/right baseplate)		 1.0 x 1.0 in
(25.4 x 25.4 mm)

Operating Conditions
Warm-up time (typical)
   Stand-By
   Cold Start
< 15 min.
< 30 min.
Ambient Temperature +15°C to +35°C
Relative Humidity
  (non-condensing)		 10 to 90%
Cooling - Power Supply Air-Cooled
Cooling - Laser Head Air-Cooled

Electrical
Voltage
   Single-Phase, 3-Wire		 100 to 240 VAC
Frequency 50 to 60 Hz
Power Consumption 750 W

Mechanical
Weight
   Laser Head

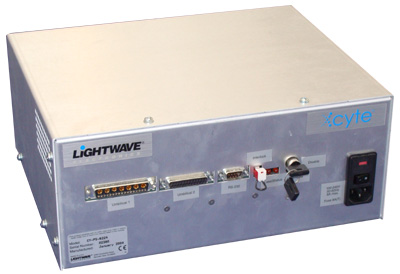

   Power Supply
24 lb (11 kg)
15 lb (6.8 kg)
Dimensions, (LxWxH)
   Laser Head

   Power Supply
 		 (Approximate for shipping)
17 x 6 x 7.5 in
(43 x 15.24 x 19 cm)
13.5 x 11 x 6 in
(34.3 x 28 x 15.24 cm)


   1 Measurements taken at the 3σ level, unless stated otherwise.
    2 Averaged over 1 minute after >1 hour from start.
    3 First 500 hours of operation.
    4 Averaged over 10 seconds with 1 second sample interval after 1 hour from start.
    5 Measured after >1 hour from start. Does not apply to model CY-SM150.
    6 RMS, 3σ does not apply.

Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.
